SCB 13 Dry Type Transformer
Categories：
Dry-Type Power Transformer
Email：info@byttransformer.com

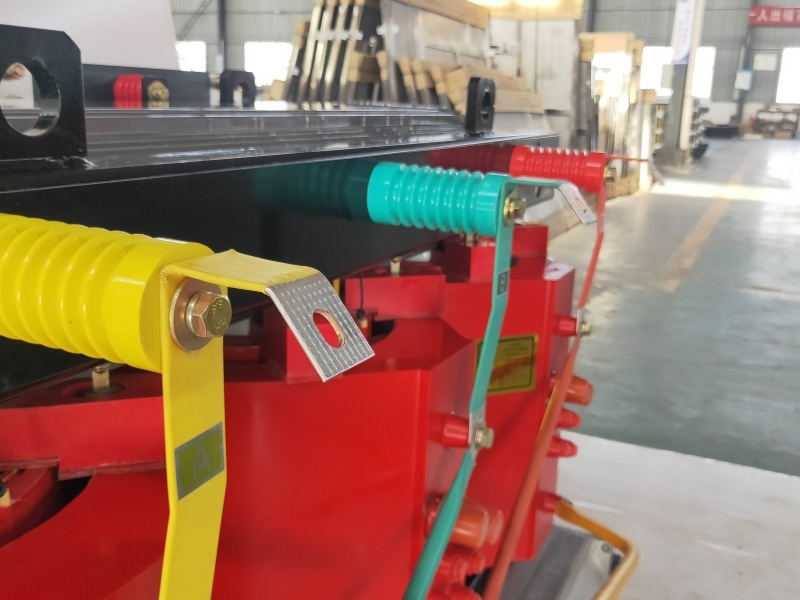

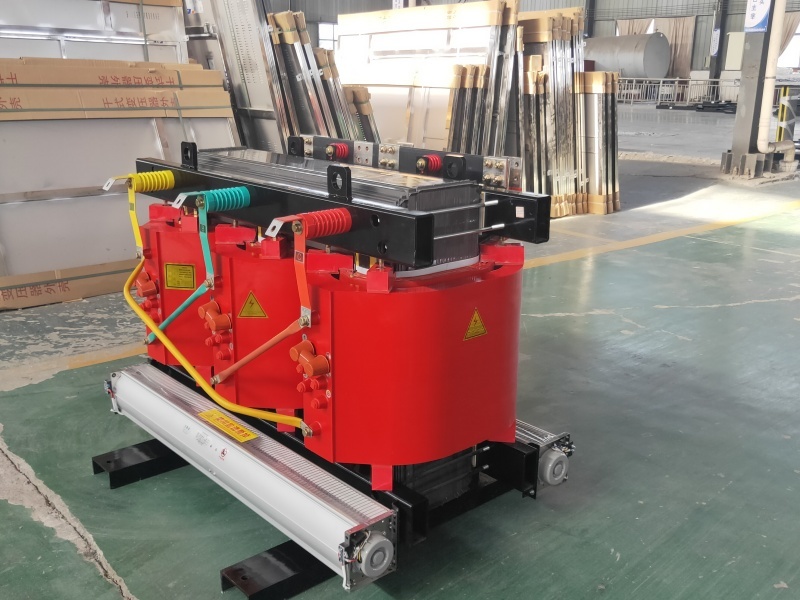

Product Pictures
Advantage of SCB dry-type power transformer
Safety Features
The absence of flammable oils in dry-type transformers significantly reduces the risk of fire hazards, making them ideal for indoor installations in sensitive environments such as hospitals, data centers, and schools. This safety feature ensures peace of mind for operators and building occupants.
Environmental Friendly
With no oil to manage or dispose of, dry-type transformers are environmentally friendly options that align with sustainable practices. This eco-conscious design makes them suitable for green building initiatives and projects that prioritize environmental responsibility.
Low Maintenance Requirements
Dry-type transformers require minimal maintenance compared to oil-filled transformers, resulting in reduced operational costs and downtime. This low-maintenance characteristic makes them ideal for applications where regular maintenance may be challenging or costly.
Versatile Installation Options
The compact and self-contained design of dry-type transformers allows for versatile installation in various indoor environments without the need for additional infrastructure modifications. This flexibility enables seamless integration into existing systems with minimal disruption.
Fire-Resistant Construction
The use of resin insulation in dry-type transformers enhances their fire resistance, providing an added layer of protection in critical applications where fire safety is paramount. This feature ensures operational continuity and safety in the event of unforeseen circumstances.
Efficient Energy Transfer
Dry-type transformers are known for their high efficiency and reliable energy transfer capabilities, contributing to overall system performance and energy savings. This efficiency ensures optimal power distribution and operational effectiveness in diverse applications.
|
Rated Capacity(KVA) |
No Load Loss(W) |
Load Loss(W) |
Impedance(%) |
Vector Group | Extend Connection | ||
| B(100) | F(120) | H(145) | |||||
| 30 | 135 | 605 | 640 | 685 | 4.0 | Yyn0 or Dyn11 |
±5% ±2*2.5% |
| 50 | 195 | 845 | 900 | 965 | |||
| 80 | 265 | 1160 | 1240 | 1330 | |||
| 100 | 290 | 1330 | 1410 | 1520 | |||
| 125 | 340 | 1560 | 1660 | 1780 | |||
| 160 | 385 | 1800 | 1910 | 2050 | |||
| 200 | 445 | 2130 | 2270 | 2440 | |||
| 250 | 515 | 2330 | 2480 | 2660 | |||
| 315 | 635 | 2940 | 3120 | 3350 | |||
| 400 | 705 | 3370 | 3590 | 3850 | |||
| 500 | 835 | 4130 | 4390 | 4700 | |||
| 630 | 965 | 4970 | 5290 | 5660 | |||
| 630 | 935 | 5050 | 5360 | 5760 | 6.0 | ||
| 800 | 1090 | 5890 | 6260 | 6710 | |||
| 1000 | 1270 | 6880 | 7310 | 7880 | |||
| 1250 | 1500 | 8190 | 8720 | 9330 | |||
| 1600 | 1760 | 9940 | 10500 | 11300 | |||
| 2000 | 2190 | 12200 | 13000 | 14000 | |||
| 2500 | 2590 | 14500 | 15400 | 16600 | |||
